基于svg的关于剧本场景绘制的项目
项目介绍
技术栈
- vue
- scss
- es6
- svg.js
- axios
- jquery
- webpack
展示
项目是关于剧本绘制，剧本章节的创建，场景绘制（直线，箭头，圆，矩形，文字，图片等基本操作），对绘制的对象进行操作（删除，旋转，放大缩小，文字编辑等）等。
展示一下，简单展示两个demo页面

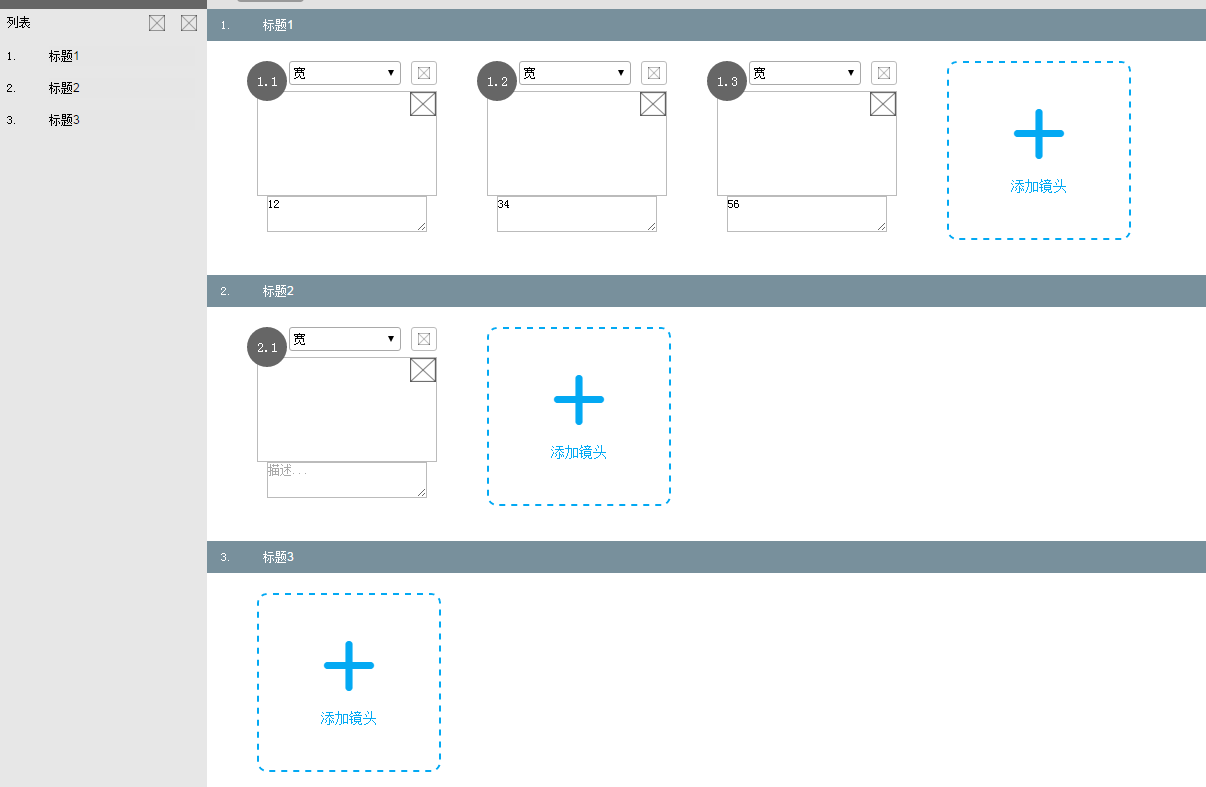

- 章节标题

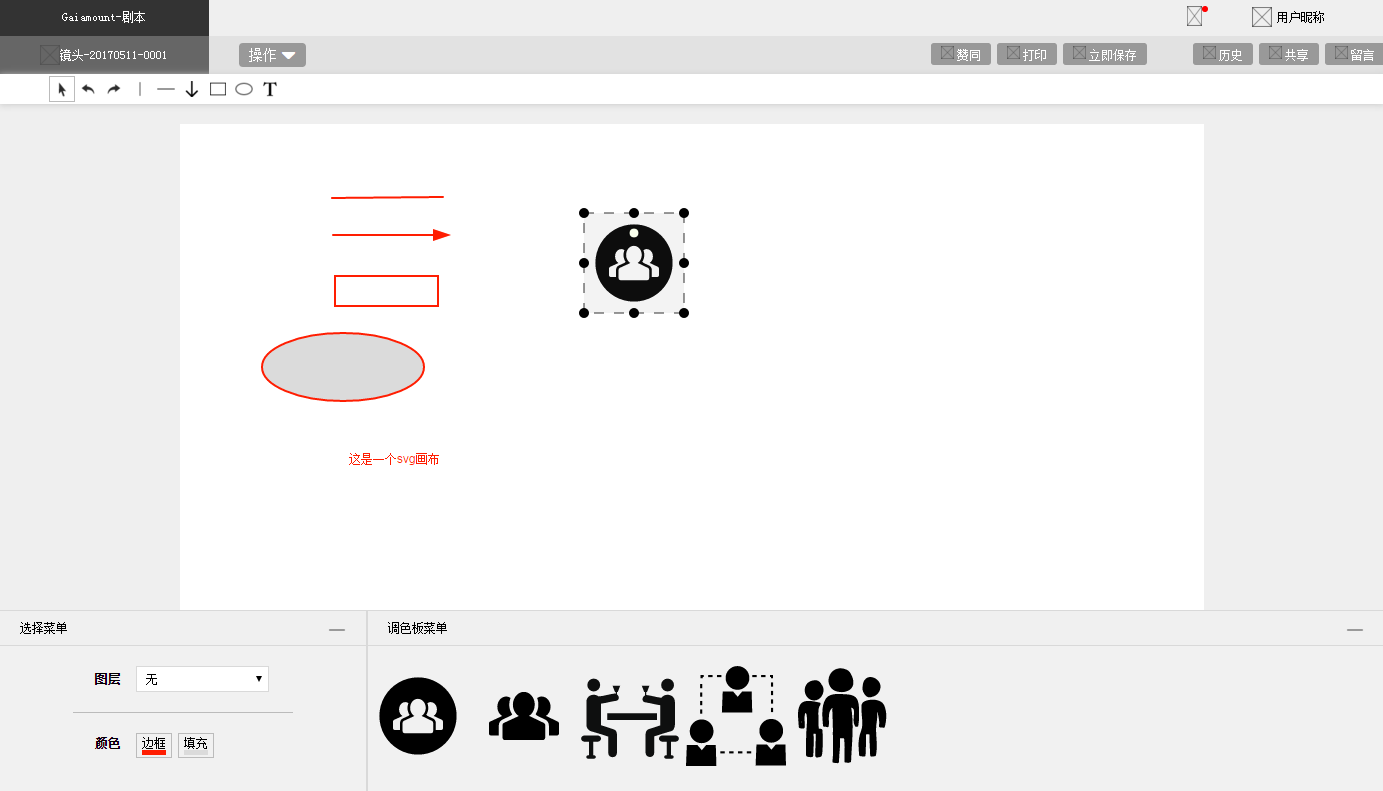

- 画布页面
收获
canvas VS svg
Canvas
- 依赖分辨率
- 不支持事件处理器
- 弱的文本渲染能力
- 能够以 .png 或 .jpg 格式保存结果图像
- 最适合图像密集型的游戏，其中的许多对象会被频繁重绘
SVG
- 不依赖分辨率
- 支持事件处理器
- 最适合带有大型渲染区域的应用程序（比如谷歌地图）
- 复杂度高会减慢渲染速度（任何过度使用 DOM 的应用都不快）
- 不适合游戏应用
Canvas提供的功能更原始，适合像素处理，动态渲染和大数据量绘制 SVG功能更完善，适合静态图片展示，高保真文档查看和打印的应用场景
考虑到最后这写场景会被打印成图片等操作，最后决定使用svg
svg.js
svg.js像jquery一样。对svg进行了封装。非常轻量，更主要是好用。
顺便一说还有个snap.svg.js,感觉也还不错
还用到svg.js等插件
- svg.draggable.js // 拖拽
- svg.resize.js // 缩放旋转
- svg.select.js // 选择
实现svg基本图形绘制
bindBarEvent () { // 画图形事件
const that = this
this.draw.on('mousedown', function (ev) {
that.startPos = {x: ev.offsetX, y: ev.offsetY}
switch (that.type) {
case 'ctrl':
break
case 'line':
that.shape = that.draw.line(that.startPos.x, that.startPos.y, that.startPos.x, that.startPos.y)
that.shape.stroke({color: that.strokeColor, width: 2, linecap: 'round'})
break
case 'arrow':
that.shape = that.draw.line(that.startPos.x, that.startPos.y, that.startPos.x, that.startPos.y)
that.shape.stroke({color: that.strokeColor, width: 2, linecap: 'round'})
that.shape.marker('end', 9, 6, function (add) {
add.path('M0,0 L0,6 L9,3 Z').fill(that.strokeColor)
})
break
case 'polyline':
that.shape = that.draw.line(that.startPos.x, that.startPos.y, that.startPos.x, that.startPos.y)
that.shape.stroke({color: that.strokeColor, width: 2, linecap: 'round'})
break
case 'circle':
that.shape = that.draw.circle(0).move(that.startPos.x, that.startPos.y)
that.shape.stroke({
color: that.strokeColor,
width: 2,
linecap: 'round'
}).fill(that.fillColor)
break
case 'rect':
that.shape = that.draw.rect(0, 0).move(that.startPos.x, that.startPos.y)
that.shape.stroke({
color: that.strokeColor,
width: 2,
linecap: 'round'
}).fill(that.fillColor)
break
case 'ellipse':
that.shape = that.draw.ellipse(0, 0).move(that.startPos.x, that.startPos.y)
that.shape.stroke({
color: that.strokeColor,
width: 2,
linecap: 'round'
}).fill(that.fillColor)
break
case 'text':
let text = prompt('输入文本')
if (text) {
that.shape = that.draw.text(text).move(that.startPos.x, that.startPos.y)
that.shape.dx(0).dy(-10).fill(that.strokeColor)
that.allShapeObj.push(that.shape)
that.saveHistoryHtml() // 保存历史
that.shape = null
}
break
default:
}
})
this.draw.on('mousemove', function (ev) {
if (that.shape === null) {
return
}
that.mousePos = {x: ev.offsetX, y: ev.offsetY}
switch (that.type) {
case 'ctrl':
break
case 'line':
that.shape.attr('x2', that.mousePos.x)
that.shape.attr('y2', that.mousePos.y)
break
case 'arrow':
that.shape.attr('x2', that.mousePos.x)
that.shape.attr('y2', that.mousePos.y)
break
case 'polyline':
that.shape.attr('x2', that.mousePos.x)
that.shape.attr('y2', that.mousePos.y)
break
case 'circle':
that.shape.attr('r', Math.sqrt(Math.pow(that.mousePos.x - that.startPos.x, 2) + Math.pow(that.mousePos.y - that.startPos.y, 2)))
break
case 'rect':
that.shape.attr('width', Math.abs(that.mousePos.x - that.startPos.x))
that.shape.attr('height', Math.abs(that.mousePos.y - that.startPos.y))
break
case 'ellipse':
that.shape.attr('rx', Math.abs(that.mousePos.x - that.startPos.x))
that.shape.attr('ry', Math.abs(that.mousePos.y - that.startPos.y))
break
case 'text':
break
case 'image':
if (that.shape === 'image') {
that.shape = that.draw.image(that.image)
}
that.shape.size(100, 100).move(that.mousePos.x, that.mousePos.y)
break
default:
}
})
this.draw.on('mouseup', function (ev) {
if (that.shape === null) {
return
}
that.endPos = {x: ev.offsetX, y: ev.offsetY}
switch (that.type) {
case 'ctrl':
break
case 'line':
that.shape.attr('x2', that.endPos.x)
that.shape.attr('y2', that.endPos.y)
that.allShapeObj.push(that.shape)
that.shape = null
that.saveHistoryHtml() // 保存历史
break
case 'arrow':
that.shape.attr('x2', that.endPos.x)
that.shape.attr('y2', that.endPos.y)
that.allShapeObj.push(that.shape)
that.shape = null
that.saveHistoryHtml() // 保存历史
break
case 'polyline':
break
case 'circle':
that.shape.attr('r', Math.sqrt(Math.pow(that.endPos.x - that.startPos.x, 2) + Math.pow(that.endPos.y - that.startPos.y, 2)))
that.allShapeObj.push(that.shape)
that.shape = null
break
case 'rect':
that.shape.attr('width', that.endPos.x - that.startPos.x)
that.shape.attr('height', that.endPos.y - that.startPos.y)
that.allShapeObj.push(that.shape)
that.shape = null
that.saveHistoryHtml() // 保存历史
break
case 'ellipse':
that.shape.attr('rx', Math.abs(that.endPos.x - that.startPos.x))
that.shape.attr('ry', Math.abs(that.endPos.y - that.startPos.y))
that.allShapeObj.push(that.shape)
that.shape = null
that.saveHistoryHtml() // 保存历史
break
case 'text':
break
case 'image':
that.shape = null
that.saveHistoryHtml() // 保存历史
break
default:
}
})
}
